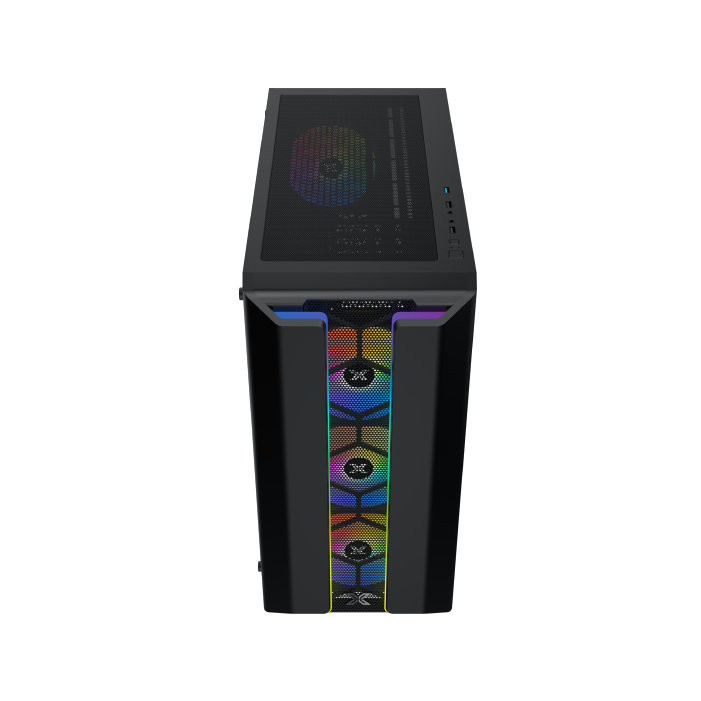

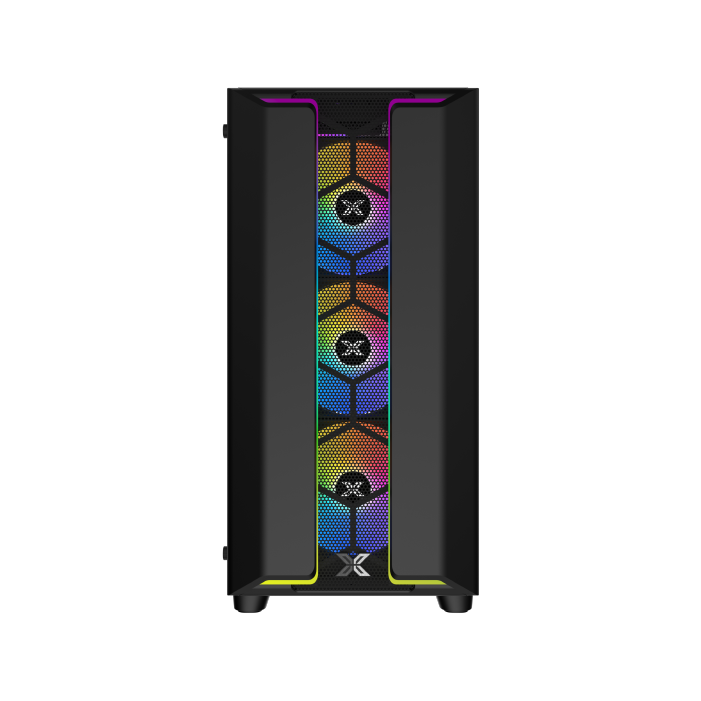

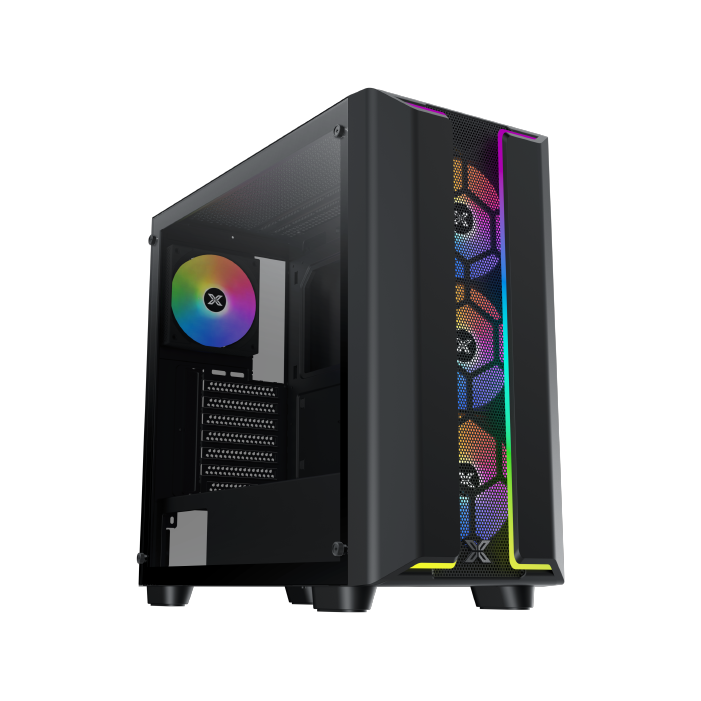

Product Name – Gaming Y Pro
Material – Steel
Dimensions – 484x218x456mm (LxWxH)
Drive Bays – HDD Cage(Bottom): 3.5″ x1, HDD Cage(Top): 3.5″ & 2.5″ Combo x1, SSD Bracket: 2.5″ x2
Expansion Slots – 7 Standard Slots
Motherboard Support – E-ATX, ATX, M-ATX, Mini ITX
Power Supply – Standard PS2 ATX PSU
Fan Support – Top: 120mm x3 or 140mm x2, Front: 120mm x3, MB: 120mm x2 (E-ATX MB Width ≤ 280mm), PSU Shroud: 120mm x3, Rear: 120mm x1
Radiator Support – Front: 360mm, Top: 360mm, (Memory Height ≤ 45mm), Rear: 120mm
I/O Panel – USB 3.0 x 1, USB 2.0 x 2, HD Audio
CPU Cooler Clearance – 170mm
VGA Length Limitation – 285mm, (Fan on MB Panel), 420mm, (No Fan on MB Panel)
PSU Length Limitation – 220mm
